LEDLINE MICRO
Need technical support or a quote for your project?

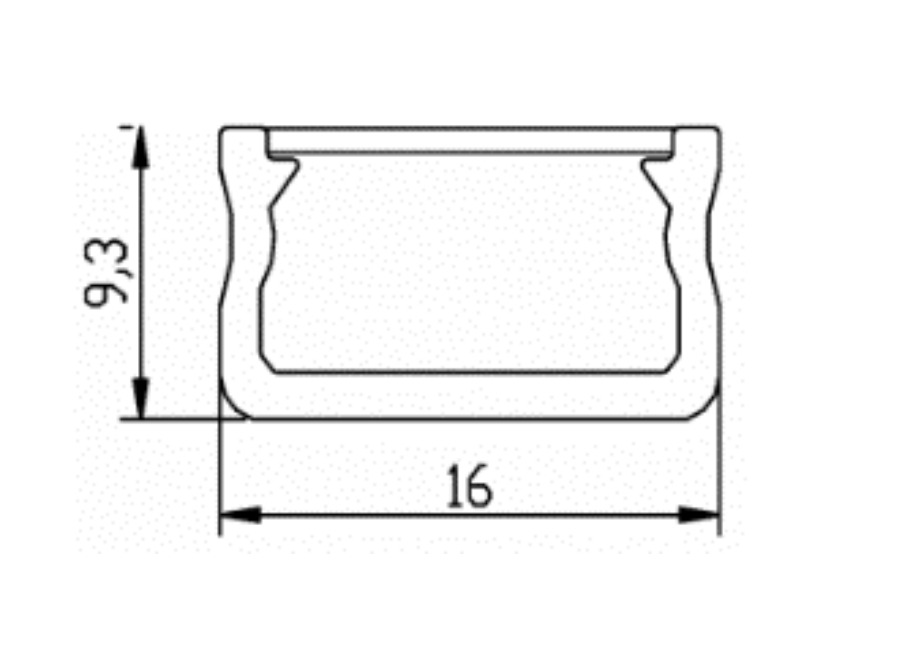

LEDLINE MICRO draws a finely scaled line of light into coves, joinery and architectural details. Its 16 × 9.3 mm section supports recessed or surface mounting while allowing materials and surfaces to remain the focus.

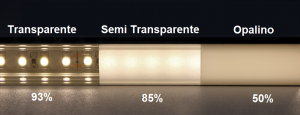

Opal, transparent and semi-transparent diffusers shape the visual quality of the light, with optional lenses for applications requiring greater reach. A choice of colour temperatures, power levels and control options gives architects flexibility in specifying each project.
Technical characteristics
Colour temperature [X] | Power [W] | Finish [A] | Diffuser [D] | Control [R] |
|---|---|---|---|---|
1 – 2400 K | 1 – 3 W | B – White RAL 9016 | O – Opal | D – DALI |
2 – 2700 K | 2 – 6 W | P – Black | T – Transparent | J – Bluetooth |
3 – 3000 K | 3 – 9 W | C – Anodised grey | ST – Semi-transparent | L – ON-OFF |
4 – 4000 K | 4 – 12 W | |||
5 – Tunable white | 5 – 15 W | |||
6 – RGB | 6 – 19 W |
Code and dimensions
Code | Size [mm] |
|---|---|
LDMS.X.W.A.D.R | 16 × 9.3 × 2000 |
