NewORPHIE
Need technical support or a quote for your project?
The ORPHIE is a recessed submersible LED spotlight designed to provide powerful, uniform and elegant underwater illumination, while ensuring discreet architectural integration.

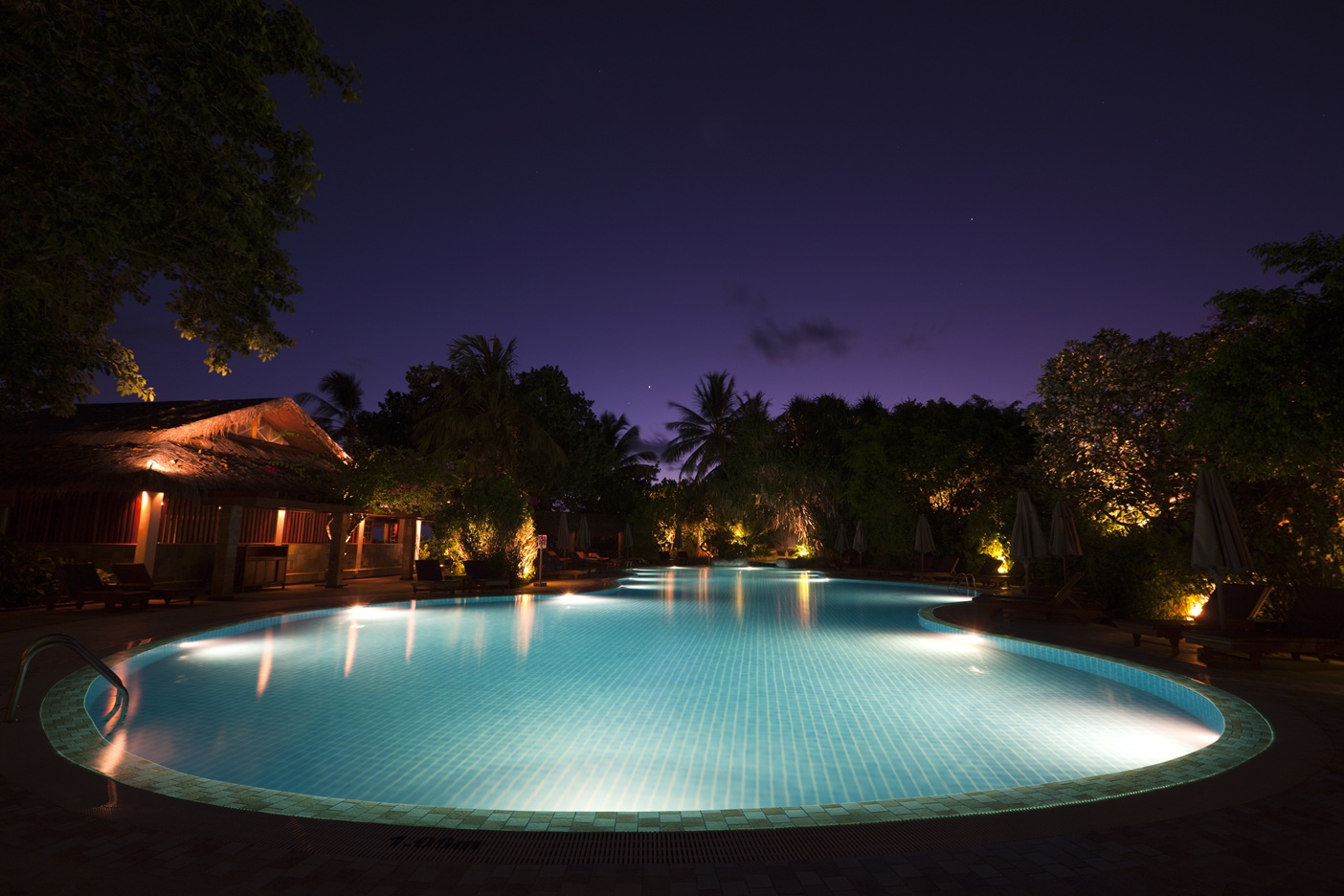

With a power of 60 W and a luminous flux of 7000 lm at 3000K, it is particularly suitable for swimming pools, large pools, fountains and other aquatic environments requiring high luminous performance.
Manufactured from electropolished 316L stainless steel, it offers excellent corrosion resistance, even in saline or chlorinated environments, and is designed for permanent immersion, with IP68/IP69 protection and IK10 impact resistance.
Installation is carried out using the OP600 stainless-steel recessed installation sleeve, ensuring robust and durable integration. It is available in several colour temperatures, as well as RGBW and Dynamic White versions, with beam angles ranging from 10° to 115°.
Main features
Power: 60 W
Luminous flux: 7000 lm (3000K)
Colour temperatures: 2700K / 3000K / 4000K / 6000K
RGBW and Dynamic White versions
Beam angles: 10° / 25° / 40° / 115°
Body in electropolished 316L stainless steel
IP68 / IP69
IK10
Suitable for permanent immersion
Recessed installation
OP600 stainless-steel installation sleeve
700 mA series connection or 12 VDC parallel connection
5 m resin-sealed cable
Lifetime: 60,000 h – L90 B10
Special version for saline environments up to 3.5% salt concentration
Compatible with DMX / DALI / 1–10V
